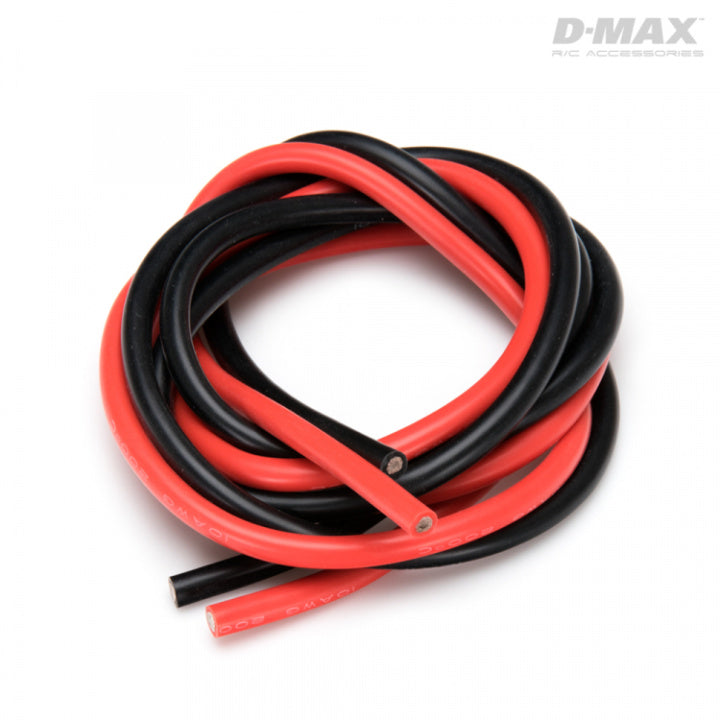

The D-Max Wire Red & Black 10AWG Cable Set offers a highly reliable solution for electrical wiring in demanding hobby and RC model-building projects. It includes one meter each of red and black wire, distinguished by their exceptional flexibility and conductivity, making them ideal for connecting high-performance components. The silicone insulation provides superior thermal resistance and effectively protects the fine copper strands from mechanical stress and environmental factors.

Key Features

• High flexibility due to silicone insulation and a construction of 1050 fine copper strands, simplifying installation even in confined spaces.
• Optimized conductivity for high-power applications, thanks to a generous conductor cross-section of 6 mm² (equivalent to 10AWG).
• Easy and secure polarity identification through the clear color coding of the cables in red and black.
• Fine-stranded construction from 1050 individual copper strands, each 0.08 mm in diameter, which increases resistance to vibrations and repeated bending.
• Robust silicone-based insulation that protects the cable from heat and abrasion, ensuring a long lifespan.

Technical Specifications

• Wire Gauge: 10AWG
• Conductor Cross-section: 6 mm²
• Conductor Diameter (Copper): 3.5 mm
• Outer Diameter (incl. Insulation): 5.7 mm
• Conductor Construction: 1050 copper strands @ 0.08 mm diameter each
• Insulation Material: Silicone-based

Scope of Delivery

• 1x 1 Meter Cable 10AWG, Red
• 1x 1 Meter Cable 10AWG, Black

Application

This cable set is particularly suitable for wiring high-performance components such as brushless motors, electronic speed controllers (ESCs), and high-current batteries in RC vehicles, aircraft, and boats. It is designed for ambitious model builders and electronics enthusiasts who require a stable and low-loss power supply for their projects.
