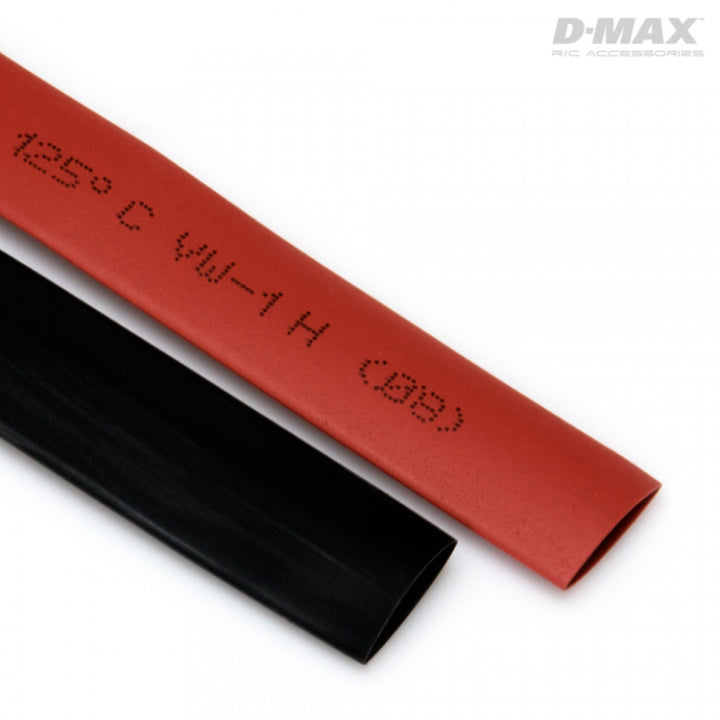

The D-MAX Heat Shrink Tubing Set in Red and Black offers a reliable solution for insulating and protecting electrical wires and connections. It's suitable for a wide range of applications, from RC model electronics to general hobby repairs. By using this set, you can securely encase cable connections, color-code them, and shield them from mechanical and environmental influences.

Key Features

• 2:1 Shrink Ratio: The tubing reduces its diameter by half when heated, ensuring a snug and form-fitting enclosure for the component.
• Flexible Polyolefin Material: Provides excellent electrical insulation properties and high resistance to common liquids and solvents, ensuring the longevity of the connection.
• Wide Operating Temperature Range: The tubing is designed for use in a temperature range of -55 °C to +125 °C, making it suitable even for demanding environments.
• Low Shrink Temperature: The shrinking process begins at just 70 °C and is fully completed at 110 °C, allowing for quick processing with a standard heat gun.
• Minimal Longitudinal Shrinkage: With a maximum longitudinal shrinkage of 5%, the covered length of the cable or component largely remains intact after shrinking.
• Color Coding: The set includes tubing in red and black, ideal for clearly identifying polarities (e.g., positive/negative) or for organizing cable harnesses.

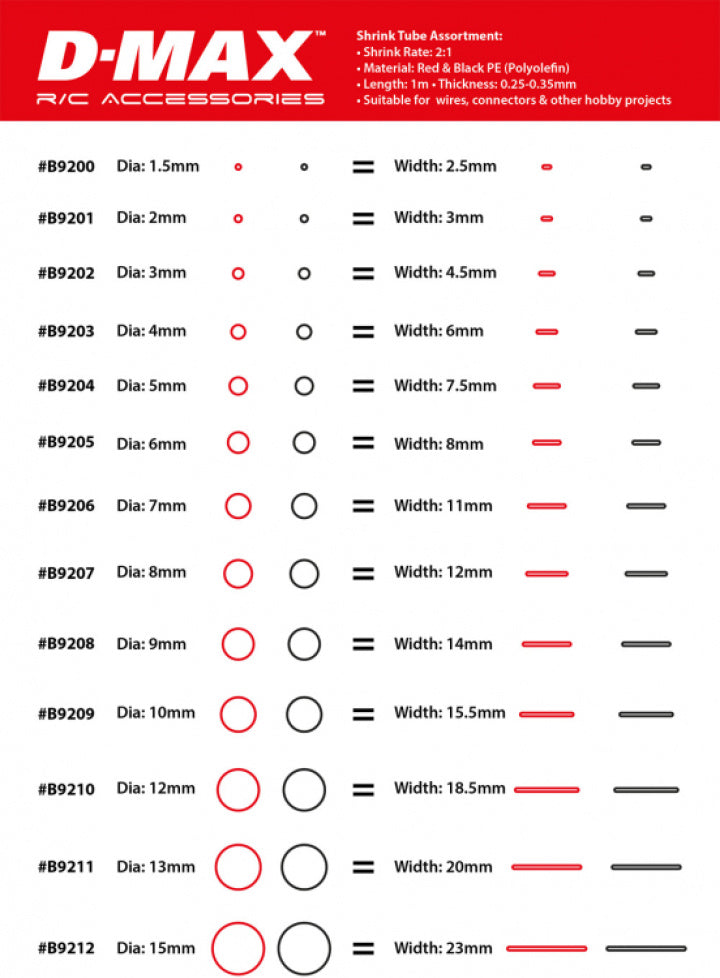

Technical Specifications

• Diameter (before shrinkage): 8 mm
• Width (flat): 12 mm
• Material: Polyolefin (PE)
• Material Thickness: 0.25 mm - 0.35 mm
• Shrink Ratio: 2:1
• Radial Shrinkage: ≥ 50 %
• Longitudinal Shrinkage: ≤ 5 %
• Shrink Temperature (fully): 110 °C
• Operating Temperature: -55 °C to +125 °C
• Colors: Red, Black

Scope of Delivery

• 1x Heat Shrink Tubing, Red (1 meter length)
• 1x Heat Shrink Tubing, Black (1 meter length)

Application

This heat shrink tubing set is designed for users in RC model building, electronics enthusiasts, and DIYers looking for a clean and durable solution for insulating, protecting, and bundling cables. Application requires basic knowledge and a heat gun or another suitable heat source.
