This D-Max heat shrink tubing provides reliable insulation and protection for electrical wires and connections. The kit is specifically designed for use in RC model building and general hobby electronics projects where a clean and secure cable sheathing is required. When heated, the tubing shrinks to half its original diameter, creating a tight, protective, and mechanically stable casing.

Key Features

• Crafted from flexible polyolefin (PE) for durable and resilient insulation against moisture and abrasion.
• Shrink ratio of 2:1, allowing the tubing to uniformly reduce to up to 50% of its original diameter when heated.
• Low shrink temperature between 70 °C and 110 °C, enabling safe and quick processing with a standard heat gun.
• Wide operating temperature range from -55 °C to 125 °C, ensuring use under various thermal conditions.
• Minimal longitudinal shrinkage of maximum 5%, which guarantees precise application without unwanted shortening of the tubing.
• Practical set with one meter each of red and black tubing for easy and clear color-coding of wires, for example, for positive and negative poles.

Technical Data

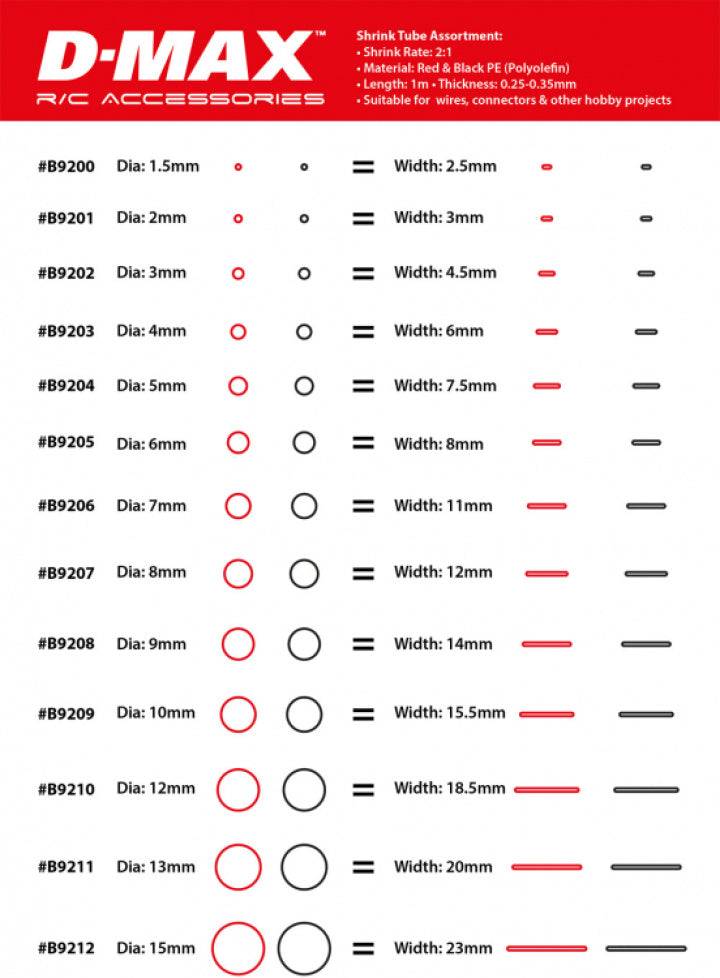

• Initial Diameter: 5 mm
• Flat Width: 7.5 mm
• Material: Polyolefin (PE)
• Wall Thickness (unshrunk): 0.25 - 0.35 mm
• Shrink Ratio: 2:1
• Radial Shrinkage: ≥ 50 %
• Longitudinal Shrinkage: ≤ 5 %
• Shrink Temperature (minimum): 70 °C
• Shrink Temperature (fully recovered): 110 °C
• Operating Temperature: -55 °C to 125 °C

Scope of Delivery

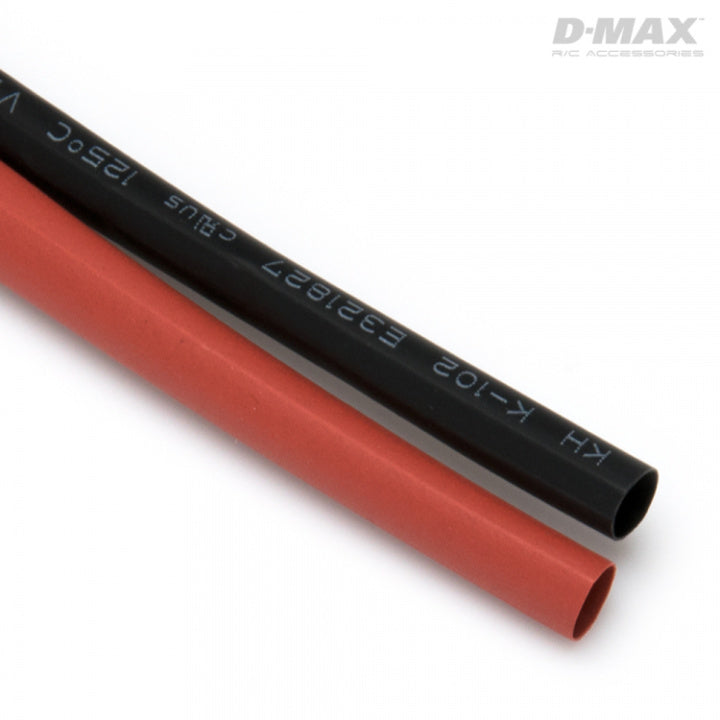

• 1x Heat Shrink Tubing 1 m, Red (Ø 5 mm)
• 1x Heat Shrink Tubing 1 m, Black (Ø 5 mm)

Application

This set is ideal for hobby electronics enthusiasts and RC model builders for neat insulation and bundling of cables, protecting solder joints from corrosion and mechanical stress, and repairing damaged cable jackets. Application only requires a suitable heat source and can be easily performed even by users with basic electronics processing knowledge.
