The D-Max Y-Adapter Serial EC3 is a specialized connector for RC model building, allowing you to connect two battery packs in series. This configuration effectively doubles the total voltage available to your propulsion system, leading to a significant boost in speed and power. This adapter is designed for modelers who want to extract maximum performance from their setup and possess the necessary knowledge regarding component compatibility.

Key Features

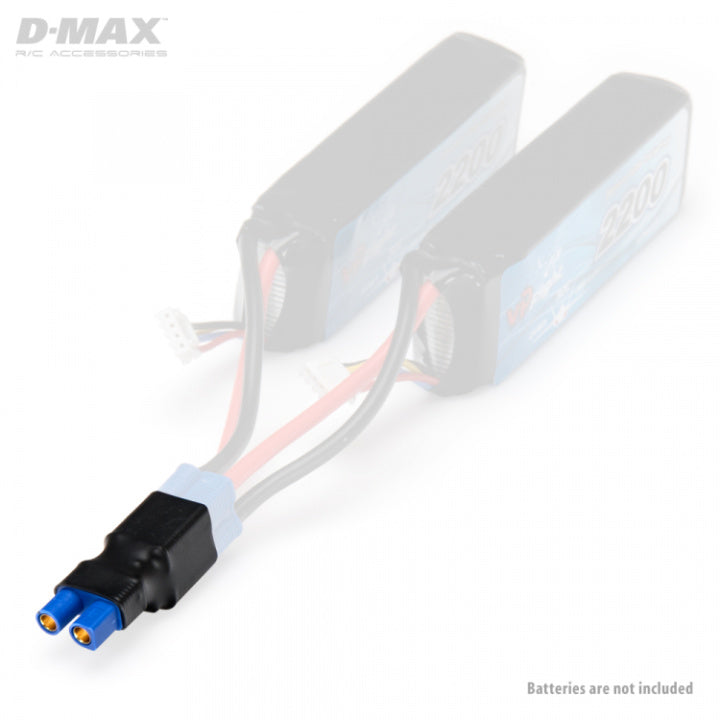

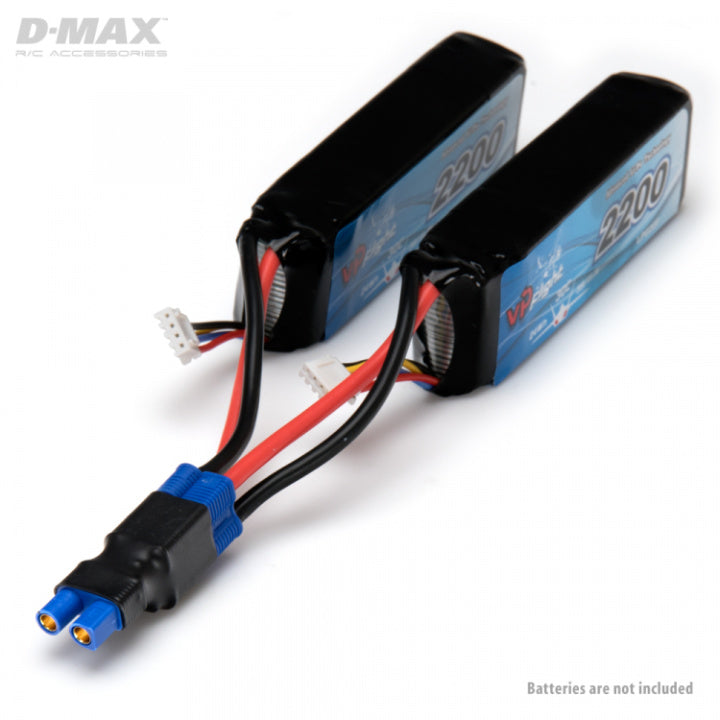

• Series Connection: Connects two batteries so their individual voltages add up, while the capacity (in mAh) remains unchanged.
• Voltage Doubling for Enhanced Power: Ideal for applications demanding higher top speeds or increased torque, such as with powerful brushless systems.
• EC3 Connector System: Utilizes the widely adopted and reverse-polarity-protected EC3 connectors, known for their low contact resistance and reliability under moderate currents.
• Plug-and-Play Installation: Enables a quick and straightforward power upgrade without the need for soldering or permanent modifications to your model's wiring.
• Compact Design: The Y-shape and short cable lengths ensure easy and tidy installation, even in confined spaces within the vehicle chassis.

Technical Data

• Product Type: Serial Y-Adapter
• Manufacturer: D-MAX
• Connectors: 1x EC3 Male to 2x EC3 Female
• Wiring: Series (Voltage addition)
• Item Number: B9718

Scope of Delivery

• 1 x D-Max Connector Y-Adapter Serial EC3

Application

The use of this adapter is intended for advanced RC users who specifically aim to increase their drivetrain's voltage. Before operation, it is crucial to check the voltage tolerance of your electronic speed controller (ESC) and motor, as overvoltage can lead to irreparable damage. For safe operation, it is absolutely essential to use two batteries with identical specifications (voltage, capacity, discharge rate/C-rating) and, ideally, similar age and charge status.
