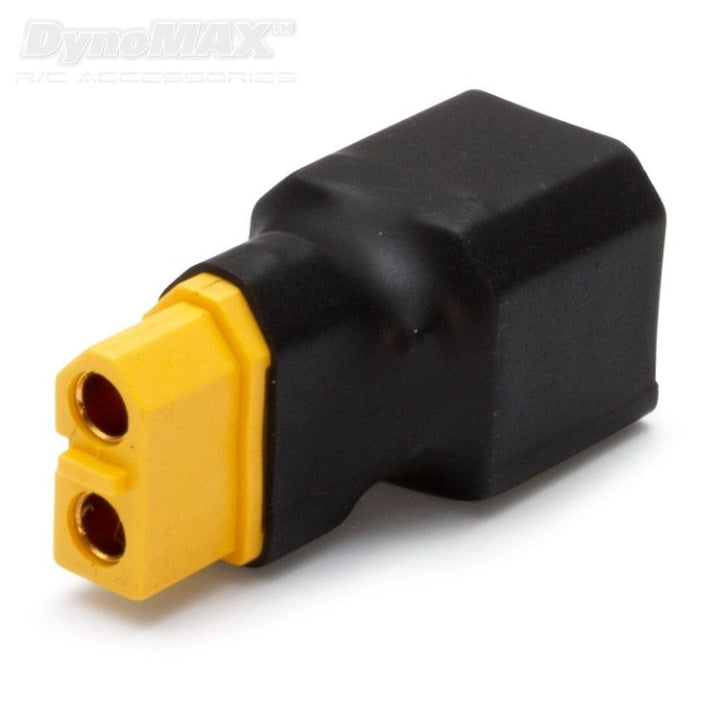

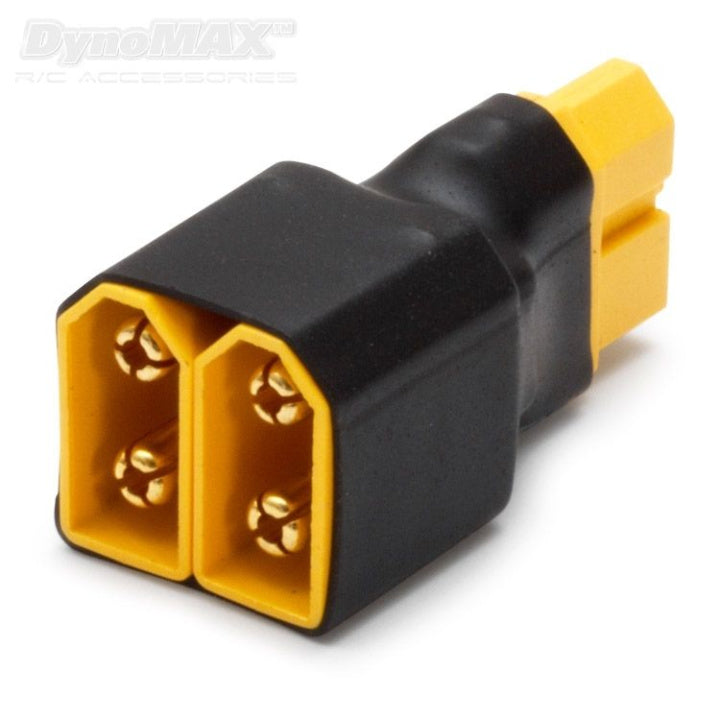

The D-Max Y-Adapter Parallel XT60 allows you to connect two batteries with XT60 connectors in parallel, effectively doubling your RC model's total capacity and thus its runtime. This accessory is designed for users seeking extended operating times without the hassle of frequent battery changes. By connecting batteries in parallel, their capacities (mAh) are added together, while the voltage remains constant at the level of a single battery, ensuring a straightforward expansion of your energy reserves.

Key Features

• Doubled Capacity: Parallel connection of two batteries adds their capacities, leading to a directly proportional increase in drive or flight time.
• Constant Voltage: The system's voltage remains unchanged, eliminating the need for adjustments to your powertrain (motor, ESC).
• Secure Connection: XT60 plugs and sockets ensure a stable, high-current connection with low contact resistance for maximum efficiency.
• Plug-and-Play Installation: The adapter requires no soldering and can be immediately used between your batteries and the Electronic Speed Controller (ESC) or a Power Distribution Board (PDB).
• Compatibility Recommendation: For optimal performance and to protect your batteries, using two batteries with identical cell count and capacity is highly recommended.
• Compact Design: Thanks to its small dimensions and minimal weight, the adapter can be easily integrated even into models with limited space.

Technical Specifications

• Connectors: 1x XT60 Male to 2x XT60 Female
• Connection Type: Parallel (for capacity increase)
• Dimensions (L x W x H): 39.4 x 17.4 x 16.6 mm
• Weight: 11.9 g

Scope of Delivery

• 1x D-Max Connector Y-Adapter Parallel XT60

Application

This adapter is intended for use in RC vehicles, aircraft, and boats. Please note that due to the extended operating time, the temperature of the motor and Electronic Speed Controller (ESC) should be carefully monitored to prevent thermal overload of components.
