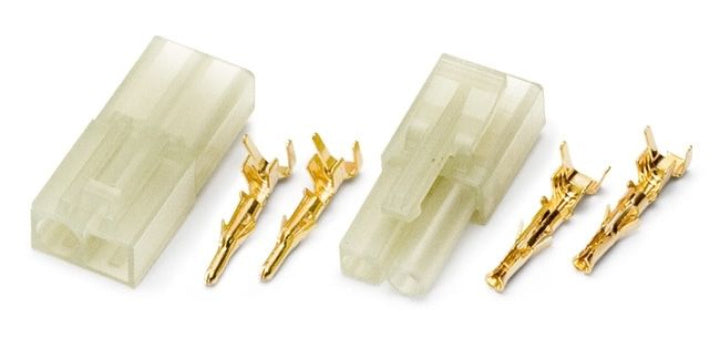

The D-Max Connector Mini-Tamiya Pair is a well-established plug system for DC power supply, specifically designed for use in RC model building. It allows you to create a reliable and, most importantly, reverse-polarity protected connection between battery packs and the electronic components of your model. Thanks to its compact design, this connector type is particularly well-suited for applications where space is limited.

Key Features

• Supplied as a complete pair, consisting of one plug (male) and one socket (female) for a full connection.
• Conforms to the widely used Mini-Tamiya standard, ensuring compatibility with a variety of components in the RC hobby.
• The asymmetrical design provides effective mechanical reverse-polarity protection, preventing accidental incorrect polarization and resulting damage to the electronics.
• Polarity is clearly coded: The positive pole (+), usually connected with a red wire, has a square housing profile.
• The negative pole (-), typically connected with a black wire, is characterized by a round housing profile in the mini version.
• This connector type was originally introduced by Tamiya in the 1970s and has since become firmly established in model building.

Technical Specifications

• Connector System: Mini-Tamiya
• Manufacturer: D-MAX
• Width: 9.5 mm
• Application Area: DC Power Supply
• Maximum Current Load Capacity: Not recommended for continuous currents exceeding 15 Amperes, as problems may occur at higher loads.
• Polarity Coding (Positive Pole): Square Profile
• Polarity Coding (Negative Pole): Round Profile

Scope of Delivery

• 1x Mini-Tamiya Plug (male)
• 1x Mini-Tamiya Socket (female)

Application

This connector pair is aimed at model builders and hobby electronics enthusiasts for assembling battery packs or repairing cable connections in remote-controlled models. Assembly requires basic soldering or crimping skills to securely connect the wires to the contacts of the plug and ensure a durable electrical connection.
